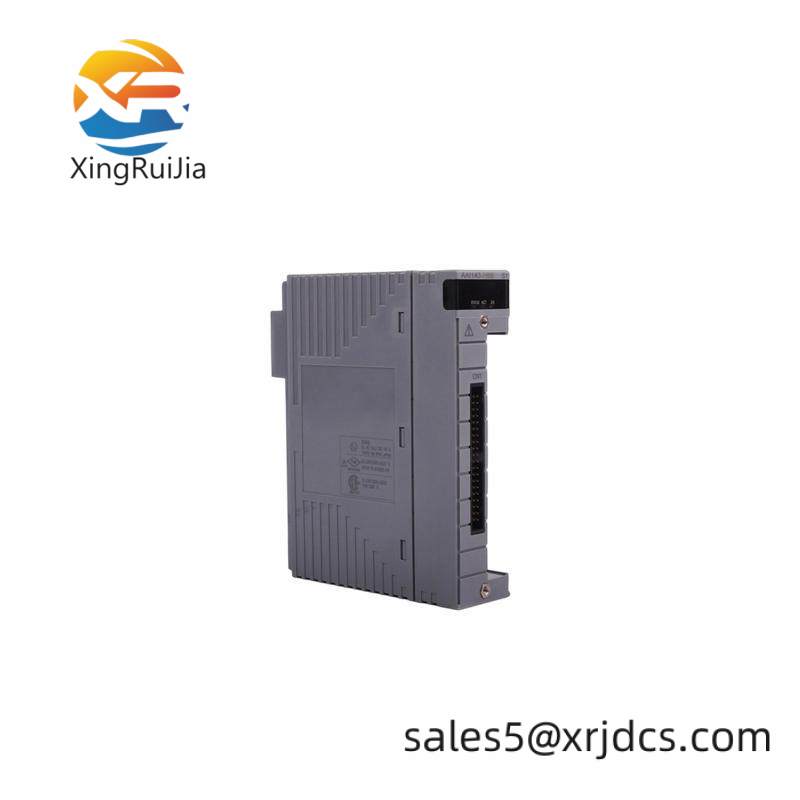

Yokogawa AAI143-H50 S1 Analog Input Module for Industrial Control

Operating Range:4 to 20 mA

Channels:16

Isolation Barrier:Yes, for intrinsically safe applications

Input Resistance:250 Ω + (voltage drop (3 V max) in the input protection circuit)/(current value)

Voltage Development:Between connecting terminals for 2-wire transmitters

Minimum Operating Voltage:Allow for voltage drop in external wiring when calculating

Module Type:AAI143-H50 S1

Brand:Yokogawa

Product Type:Analog Input Module

    This Yokogawa AAI143-H50 S1 ANALOG INPUT MODULE is designed for seamless integration into industrial control systems, providing robust performance under various environmental conditions.

    Equipped with an advanced isolation barrier, it ensures safety in inherently hazardous areas, making it ideal for applications requiring compliance with strict safety regulations.

    Featuring a wide operating range of 4 to 20 mA, this module supports a diverse array of sensors and devices, enhancing its versatility across different industries.

    With 16 channels, it offers scalability for complex systems, allowing for efficient data collection and processing without compromise on accuracy or reliability.

    The input resistance is carefully engineered to balance sensitivity with protection, ensuring minimal signal degradation even in high current scenarios.

    For optimal performance, consider the impact of voltage drops in external wiring when setting up the module with 2-wire transmitters, ensuring compliance with minimum operating voltage requirements.
