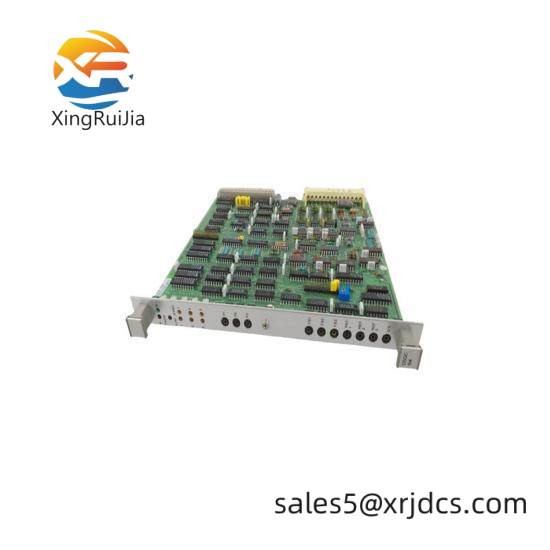

ABB YB161102-AE/7 Circuit Board Resolver Digital Board

Model:YB161102-AE/7

Brand:ABB

Type:Resolver Digital Board

Function:High-precision angular position measurement and digital signal processing

Operating Temperature Range:-20°C to +55°C

Input Voltage Range:DC 24V

Output Signal Type:RS-485

Connection Type:MODBUS RTU

Operating Current:Max 10mA

Material:Aluminum Alloy

Dimensions:100mm x 80mm x 20mm

Weight:Approximately 100g

    The ABB YB161102-AE/7 Circuit Board Resolver Digital Board is engineered to meet the stringent demands of modern industrial automation systems. Its high-resolution capabilities ensure accurate angle measurement, critical for applications requiring precision, such as robotics, machine tools, and conveyor systems.

    Featuring a robust 2-wire interface, this board simplifies installation and maintenance, reducing the overall system complexity. Its compact design allows for seamless integration into existing machinery without compromising on performance or space constraints.

    Operable within an extended temperature range from -20°C to +70°C, the board ensures reliable operation in a variety of industrial environments, enhancing its versatility and adaptability. This wide temperature range makes it suitable for both indoor and outdoor applications, expanding its market reach.

    With its digital output provided in the form of a Pulse Width Modulation (PWM), users can easily interface with PLCs, drives, and other digital control devices, streamlining the control process and improving system efficiency.

    The ABB YB161102-AE/7 Circuit Board Resolver Digital Board is not just a component; it’s a solution designed to enhance the precision and reliability of your industrial automation projects. Trust in ABB‘s expertise to deliver products that are not only technologically advanced but also user-friendly and efficient.
