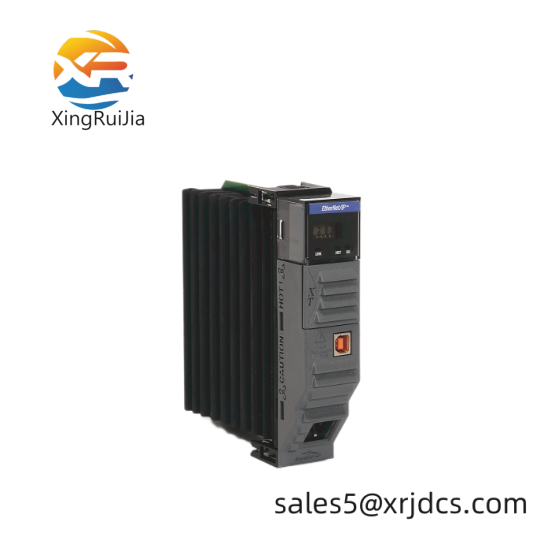

AB 1756-EN2TXT EtherNet/IP Bridge Module

Manufacturer:Allen Bradley

Model Number:1756EN2T

Communication Protocol:Ethernet/IP Bridge

Power Supply:3 mA at 24 VDC

Communication Speed:10/100 MBPS

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Relative Humidity Range:5 – 95% Non-Condensing

Vibration Tolerance:2 G

Shock Tolerance:30 G

Interface:Ethernet, USB Port

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

    The Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module is designed for robust industrial communication needs. This module supports Ethernet/IP protocol, providing reliable and high-speed data transmission in various automation environments. It features an open-type enclosure that ensures easy installation and maintenance. The module can operate within a wide temperature range from 0 to 60°C, making it suitable for harsh industrial settings. With its advanced isolation capability of up to 30V continuous, it offers superior protection against electrical disturbances. Additionally, the module supports both shielded and unshielded twisted pair cables, enhancing flexibility in network cabling options. The 1756-EN2TXT is compatible with Allen-Bradley ControlLogix systems and integrates seamlessly with existing infrastructure, offering a scalable solution for expanding industrial networks. The product is meticulously engineered to meet stringent industrial standards, ensuring long-term reliability and performance.
